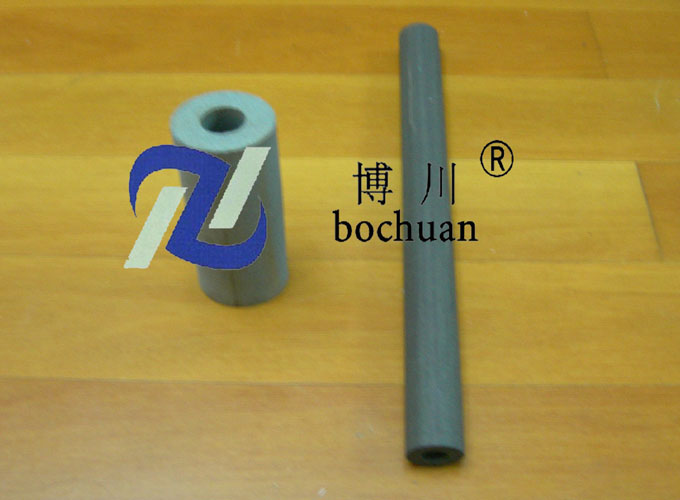

SiC Thermocouple Protection Tubes have superior characteristics of high temperature tolerance, oxidation
resistance, thermal conductivity, corrosion resistance, long time service life, etc.
The series of products are widely used for measuring temperature in the fields of ceramic, industrial furnaces, metallurgy, chemical industry, etc.
Technical Parameter of Reaction Bonded of Silicon Carbide
|
item |
unit |
data |
|
temperature of application |
C |
1380 |
|
density |
g/cm3 |
>=3.02 |
|
open porosity |
% |
<0.1 |
|
bending strength |
Mpa |
250(20C) |
|
|
Mpa |
280(1200C) |
|
modulus of elasticity |
Gpa |
330(20C) |
|
|
Gpa |
300(1200C) |
|
thermal conductivity |
W/m.k |
45(1200C) |
|
coefficient of thermal expansion |
K-1*10-6 |
4.5 |
|
rigidity |
|
13 |
|
acid-proof alkaline |
|
Excellent |
