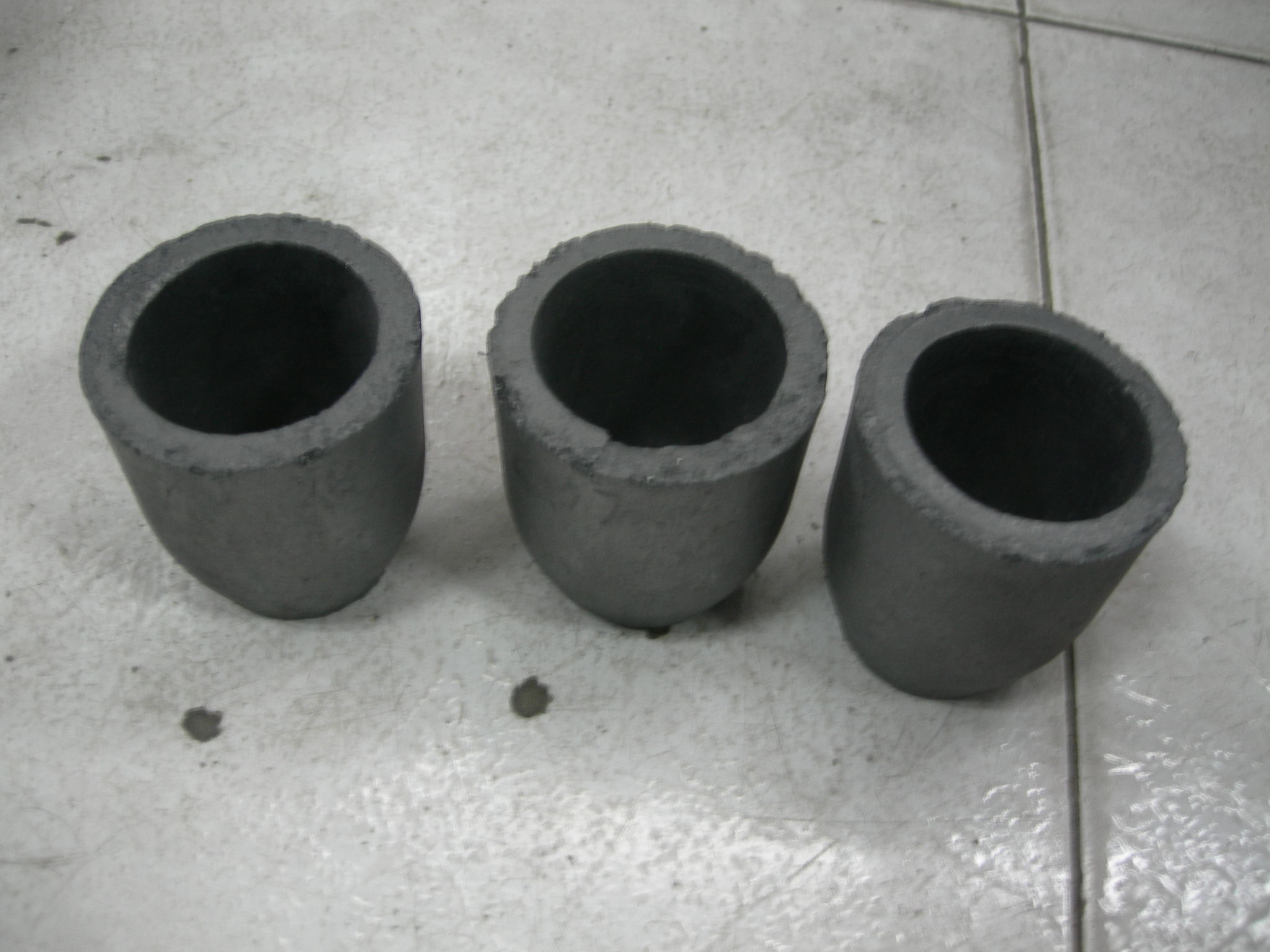

1.Introduction
The material of graphite crucible can be divided into artificial graphite,clay bonded graphite, and carbon bonded graphite.Artificial graphite crucible is made of graphite electrode as material and made out.
Clay bonded graphite, the main ingredient is natural crystal graphite and clay Now only used in small amount of high-temperature melting of cast iron, cast steel melting and melting of precious metals.
Carbon bonded graphite, the main ingredient is natural crystal graphite and silicon carbide. Mainly used in the melting of the majority of non-ferrous metals such as copper alloy and aluminum alloy
2.Property:
Technological Merit
Excellent corrosion resistance
High heat conduction performance
Good mechanical strength
Good resistance to thermal shock
Long life
a. High thermal conductivity
b.Thermal shock resistance
c.High temperature resistance
d.Corrosion resistance
d. Mechanical shocks resistance
d. Oxidation resistance
e. Anti-adhesive
f. Small metal contamination
g. Good clearner
3. Shapes:standard type,long type,bowl type,lip type, electric furnace type
4.Purpose:melting of copper alloy and light metal alloy
5.Index:
|
Standard parameter |
Testing data |
||
|
Refractoriness ≥ |
1630℃ |
Refractoriness≥ |
1635℃ |
|
Carbon connent ≥ |
38% |
Carbon connent≥ |
41.46% |
Apparent porosity ≤ |
35% |
Apparent porosity ≤ |
32% |
|
Bulk density ≥ |
1.6g/cm3 |
Bulk density ≥ |
1.71g/cm3 |
|
Specification |
OD at top |
Outer Height |
OD at bottom |
|
1000# |
640 |
773 |
380 |
|
800# |
630 |
720 |
335 |
|
500# |
540 |
698 |
313 |
|
400# |
520 |
648 |
282 |
|
350# |
485 |
610 |
275 |
|
300# |
470 |
573 |
240 |
|
250# |
450 |
550 |
240 |
|
200# |
398 |
490 |
220 |
|
150# |
370 |
430 |
192 |
|
120# |
345 |
383 |
195 |
|
100# |
326 |
366 |
200 |
|
80# |
300 |
358 |
175 |
|
electric furnace 500 |
420 |
760 |
420 |
|
electric furnace 1000 |
520 |
900 |
520 |
